MCC & APFC Electrical Panel Board Manufacturers in Madurai, Salem, Coimbatore

MCC & APFC Electrical Panel Board Manufacturers in Madurai, Salem, Coimbatore, the field of VM Control System. For any questions contact us.

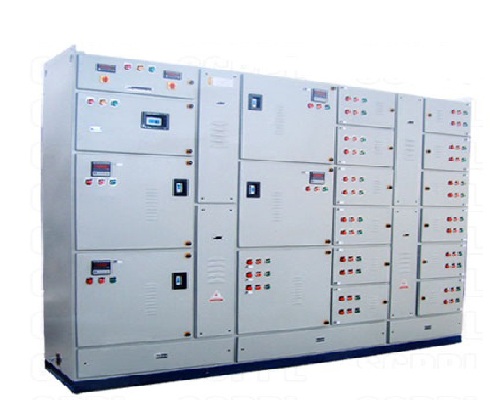

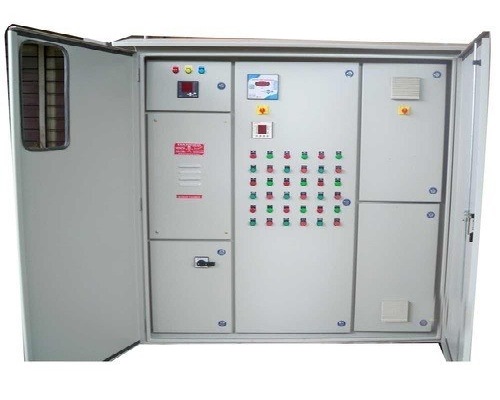

Automatic Power Factor Control or APFC Panels are mainly used for the improvement of Power Factor. APFC is an automatic power factor control panel which is used to improve the power factor, whenever required, by switching ON and OFF the required capacitor bank units automatically.

Types APFC Panels Board

There are two types of APFC panel APFC full form is Automatic power factor improvement APFC Panel means real time power factor correction panel. APFC – panels making best design with standard specification as per KVAR rating and best price.

• Standards of APFC Panel
• Protection Level
• Structure

Standards of APFC Panel

APFC panel also known as automatic power factor improvement Panel because, it can control the power factor for reactive loads. Similarly they are designed as per IS standard IS 8623, IEC 60529. In addition, accu panels provide high quality and reliability.

Protection Level

Firstly, all indoor panels have protection of IP54 or better even more all outdoor panels will have protection of IP65 or better. Secondly, all APFC Panels are made by laser cutting CRCA sheet. Afterthat powder coating with 7-Tank process.

Structure

All the APFC with metal clad, totally enclosed, rigid, floor mounted, air -insulated, cubical type suitable for operation on three phase / single phase,415 or 230 volts, 50 Hz. Power control center panel have designed for minimum expected ambient temperature of 45 degrees Celsius. Also 80  percent humidity.

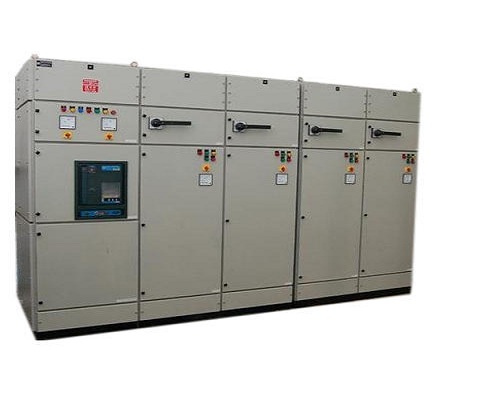

MCC Panel Board

A motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect.

Benefits of an MCC Panel Board

1. MCCs provide a single source for coordination of components. Electrical distribution and motor control equipment can be purchased as a pre-assembled, pre-tested system—usually at a less expensive installed cost when compared to separately mounted controls.
2. MCCs require significantly less line-side power wiring than separate controls, which makes them easier to install.
3. MCCs come in space-efficient packaging, with excellent configuration flexibility. They also centralize maintenance.
4. MCCs offer excellent fault containment and electrical component isolation.

The major components of MCC Panel Board

• Bus bar
• Circuit breaker
• Magnetic contactor
• Contactor auxiliary contact
• Relay control
• Control transformer
• Cable installation control panel enclosure
• Limit switch
